U11

T-Motor

  • $ 34990

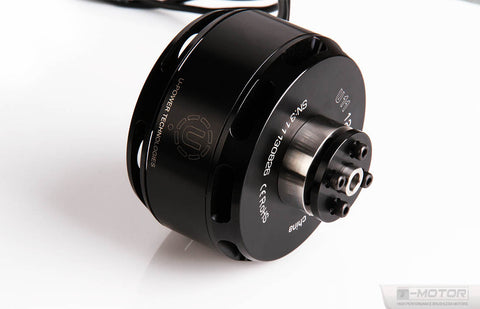

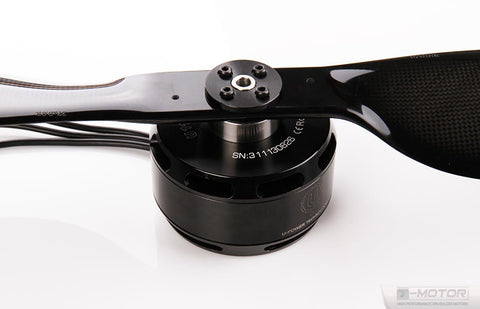

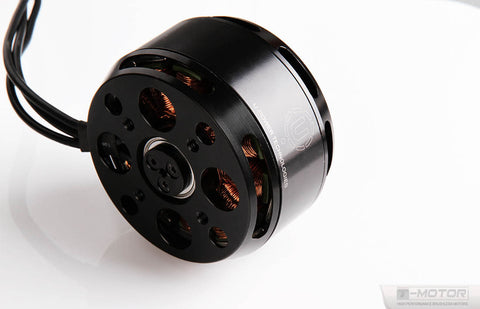

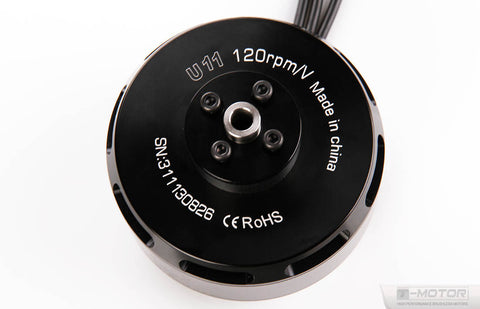

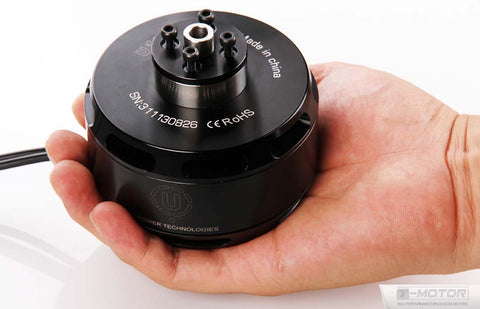

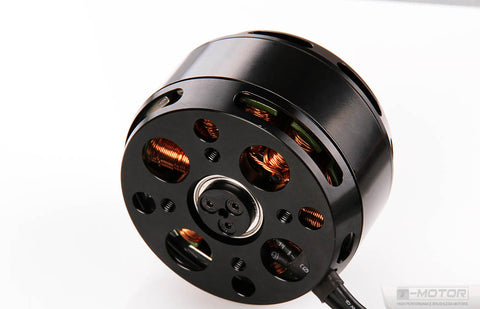

U11 - 120KV and 90KV

Specifications:
KV...........................................................................................................90
Configu-ration............................................................................12N14P
Shaft Diameter..............................................................................15mm
Motor Dimension(Dia.*Len).............................................Φ80×50mm
Weight(g)..........................................................................................730g
ldle current(10)@10v(A)...................................................................0.7A
No.of Cells(Lipo)............................................................................6-12S
Max Continuous current(A)180S......................................................60A
Max Continuous Power(W)180S................................................3000W
Max. efficiency current........................................................(5-18A)>83%
internal resistance..........................................................................99mΩ


 Specifications:

KV.................................................................................................................120
Configu-ration....................................................................................12N14P
Shaft Diameter......................................................................................15mm
Motor Dimension(Dia.*Len).....................................................Φ80×50mm
Weight(g)..................................................................................................730g
ldle current(10)@10v(A)..........................................................................0.7A
No.of Cells(Lipo)....................................................................................6-12S
Max Continuous current(A)180S.............................................................80A
Max Continuous Power(W)180S.......................................................4000W
Max. efficiency current...............................................................(9-25A)>81%
internal resistance..................................................................................57mΩ

Test Environment:
Motor: U11 KV120
ESC:T-MOTOR FLAME80A
Prop: T-MOTOR 26*8.5CF / 27*8.8CF / 28*9.2CF / 29*9.5CF
Battery: 12S 20000mAh 25C
Test data:
