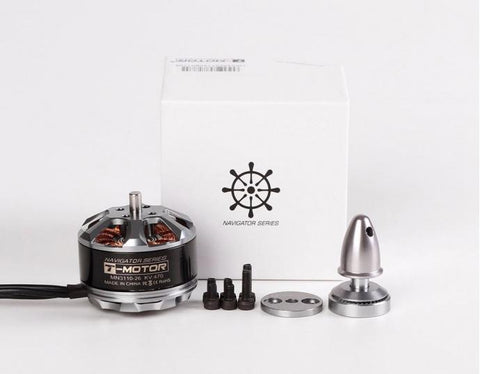

MN3110
MN3110 - 470KV, 700KV and 780KV - 3.5mm connector
Specifications:
KV............................................................................................................470
Configu ration...............................................................................12N14P
Stator Diameter................................................................................31mm
Stator Length....................................................................................10mm
Shaft Diameter...................................................................................4mm
Motor Dimension(Dia.*Len).........................................Φ37.7×28.5mm
Weight(g)...............................................................................................80g
ldle current(10)@10v(A).....................................................................0.3A
No.of Cells(Lipo).................................................................................3-6S
Max Continuous current(A)180S.......................................................15A
Max Continuous Power(W)180S....................................................330W
Max. efficiency current............................................................(2-8A)>84%
internal resistance.........................................................................135mΩ
Specifications:
KV..............................................................................................................700
Configu-ration.................................................................................12N14P
Stator Diameter..................................................................................31mm
Stator Length......................................................................................10mm
Shaft Diameter.....................................................................................4mm
Motor Dimension(Dia.*Len)............................................Φ37.7×28.5mm
Weight(g)..................................................................................................80g
ldle current(10)@10v(A).......................................................................0.3A
No.of Cells(Lipo)...................................................................................3-6S
Max Continuous current(A)180S.........................................................21A
Max Continuous Power(W)180S......................................................466W
Max. efficiency current............................................................(3-10A)>80%
internal resistance.............................................................................92mΩ
internal resistance.............................................................................92mΩ
Specifications:
KV..............................................................................................................780
Configu-ration.................................................................................12N14P
Stator Diameter..................................................................................31mm
Stator Length......................................................................................10mm
Shaft Diameter.....................................................................................4mm
Motor Dimension(Dia.*Len)...........................................Φ37.7×28.5mm
Weight(g).................................................................................................80g
ldle current(10)@10v(A)......................................................................0.4A
No.of Cells(Lipo)..................................................................................3-6S
Max Continuous current(A)180S........................................................26A
Max Continuous Power(W)180S....................................................481W
Max. efficiency current..........................................................(3-10A)>81%
internal resistance............................................................................71mΩ
internal resistance............................................................................71mΩ
