U3

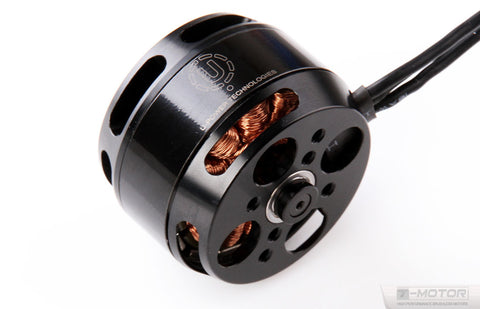

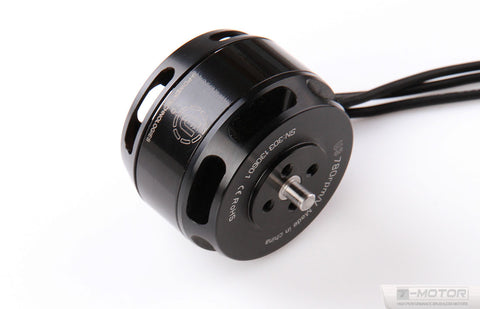

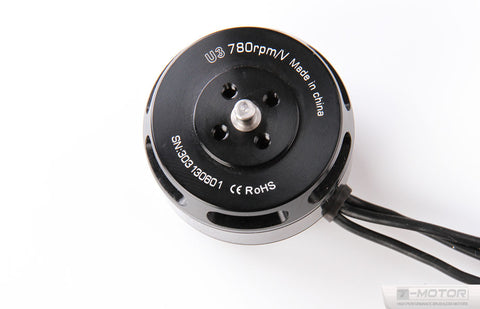

U3 - 700KV with Self-cooling design
Specifications:
KV................................................................................................................700
Configu-ration....................................................................................12N14P
Configu-ration....................................................................................12N14P
Shaft Diameter........................................................................................4mm
Motor Dimension(Dia.*Len)............................................Φ41.8×30.75mm
Weight(g)....................................................................................................97g
ldle current(10)@10v(A)..........................................................................0.5A
No.of Cells(Lipo)......................................................................................3-4S
Max Continuous current(A)180S.............................................................25A
Max Continuous Power(W)180S..........................................................500W
Max. efficiency current...............................................................(4-10A)>82%
internal resistance.................................................................................50mΩ
internal resistance.................................................................................50mΩ
