iSDT SC-608 Compact Smart Charger


  • $ 4250

The iSDT SC-608 150W 8A MINI Smart LCD Battery Balance Charger is ultra compact and full of features. This charger fits in the palm of your hand and can output up to 150w of power to quickly charger your batteries. You can even use a large LiPo battery as the power source to charge smaller batteries while at the field.


  • Input Voltage:    DC 9~32V
  • Output Voltage:    0~30V
  • Charge Current:    0.1~8.0A
  • Discharge Current:    0.1~3.0A
  • Max Charge Capacity:    150W
  • Max Discharge Capacity:    5W
  • Balancing Current:    500mA/cell
  • Balance Cells:    2-6S
  • Supported Batt. Type: :    LiFe/Lilon/LiPo/LiHv (1∽6S)
  • NiMH/Cd(1∽18S)
  • Pb(1∽12S)
  • Display:    2.4〃320x240 IPS LCD
  • Operating Temperature:    0~40°C
  • Storage Temperature:    -20~60°C
  • Dimensions:    88x58x21 mm
  • Weight:    110g

2.4" IPS Display

262K colors Hi-brightness monitor, up to 178°visible angle, brings outstanding display overcomes other chargers

scOs developed just for smart charging

Colorful and bright UI design, optimized display information, makes setup & working status clearer to read
Quick & simple function menu design, reduces operating steps up to 80%
Supports online update with PC, optimizes operating system, and improves user experience constantly

Hi converting efficiency, extreme power-volume ratio

Hi speed & efficiency synchronous power supply,
good heat-conduction with pure cooper, active heat-sinking with hi-speed fan,
make it possible to improve power by 300%

Single Knob Shuttle Control

Tired to fumble and push with finger tips? Difficult press now is replaced with smooth and natural single shuttle control,
one touch to set, makes charging with SC-608 a joyful experience.

Outstanding Design

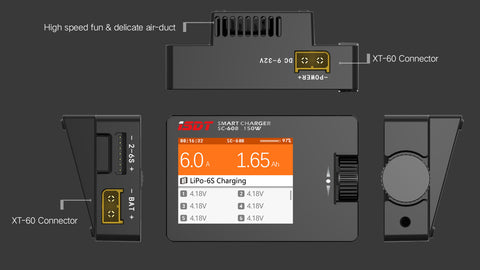

With unique design, possible to reduce the charger size as small as a cigarette pack, while improves the output capacity up to 150w att. Use XT-60 connector for input & output, connect battery more safely. Hi-speed fun & delicate air-duct, make it possible to reduce volume remarkably while guarantee adequate heat dissipation.

ARM 32bit Hi-speed CPU,ARM Cortex-M4,32bit ultra fast calculations,Data processing capacity enhanced by 20 times

Operation Instruction

  • Connect power supply, wait for initiation self-check to finish
    Set parameters which is suitable for your battery through display and shuttle knob
    Enjoy smart and quick charging with SC608.
  • Note: Do not insert or charge the battery before start the charger
  • English manual: Click and download

Package Includes

  • 1 x iSDT SC-608 150W 8A MINI Smart LCD Balance Charger
  • 1 x Manual
